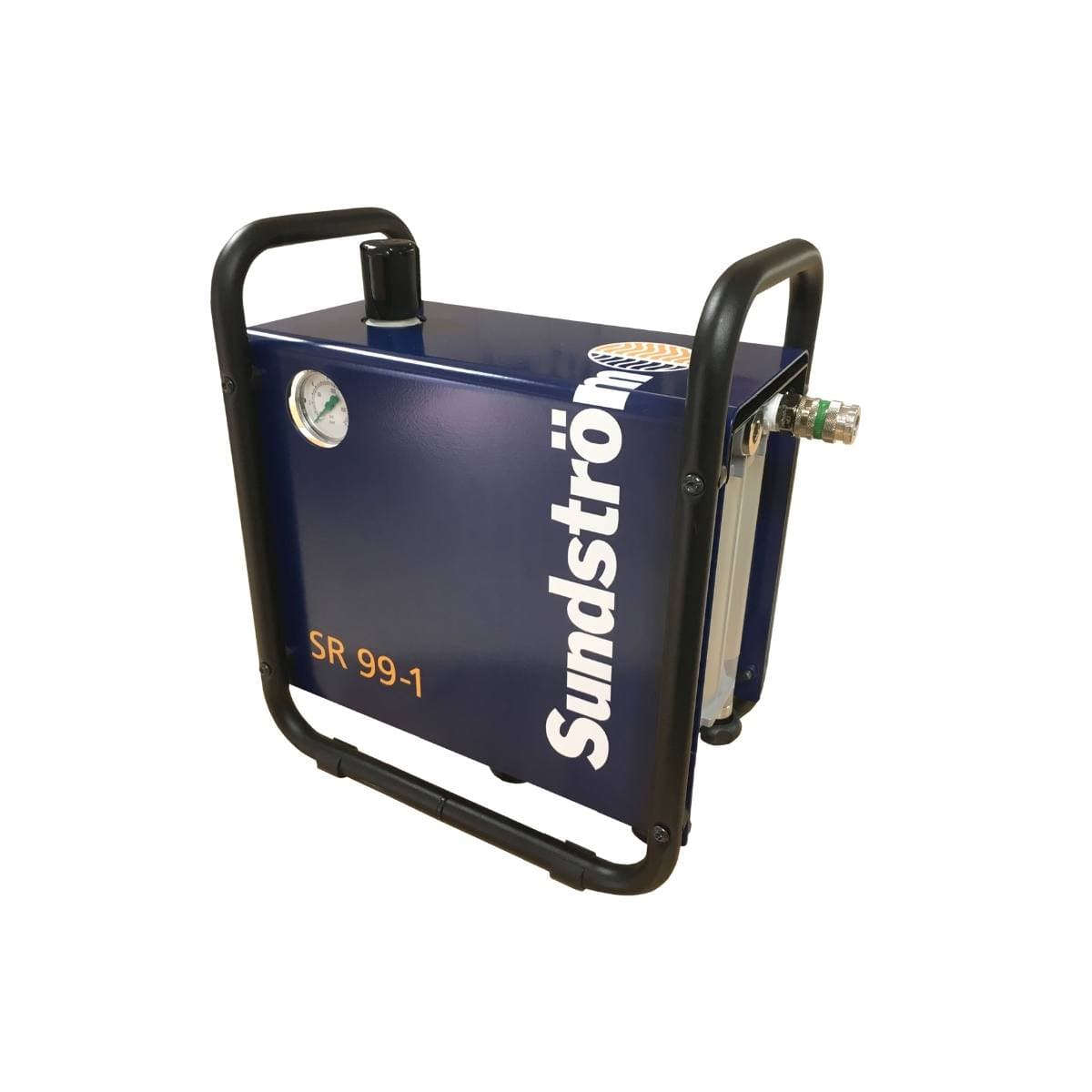

Sundström AS99-1 airline filter (EACH)

Compressed air filter used to clean ordinary compressed air for safe breathing. Also suitable for cleaning air supply to pneumatic tools and instruments that require pure air.

The filter unit produces breathing-quality air from ordinary compressed air. The unit consists of a regulator, pre-collector and main filter enclosed in a sheet steel chassis. The filter can be used standing on the floor or wall-mounted. The pre-collector, which has pressure-controlled/manual drainage, separates out coarse particles, water and oil. The inlet pressure is 6–10 bar.

Clean odourless air - filters raw supplied air

Features:

• Removes oil, water, pollutants and smells
• Heavy-duty filters: 2 x P3 (particles) and 1 x A3 (organic gas & vapour)
• Up to 3 outlets
• Robust, rugged construction
• Stand on floor or mount on wall
• Water & oil trap before filter
• Easy to change filter
• Filter lasts up to 6 months


Function:

• Stage 1: Coarse particles (oil, water, dirt) are filtered out in the pre-filter, which has a pressure-controlled/manual drain.
• Stage 2: Air moves through the main filter (replaceable SR 292 filter).
• Stage 3: Main filter removes microscopic particles and oil odours.
• Stage 4: Air moves through a secondary P3 particle filter.

Working pressure: 6 to 10 bar

Air flow: Up to 900 l/min (3 users or air tools)

Working pressure:  SR 292 filter, incorporating two particle (P3) filters — one on either side of an organic gas (A3) filter.

• Filter area of P3 filters: 2,200 cm2 approx.
• Activated carbon: approx. 500 grams
• Adsorption capacity: 100–150 g oil

Inlet: ½" BSP female

Outlets: ½" BSP female. One safety coupling; one plugged opening. An additional Y coupling that doubles the number of outlets is available as an accessory. Supplied with 1 x CEJN series coupling.

Features

• Removes oil, water, pollutants and smells
• Heavy-duty filters: 2 x P3 (particles) and 1 x A3 (organic gas & vapour)
• Up to 3 outlets
• Robust, rugged construction
• Stand on floor or mount on wall
• Water & oil trap before filter
• Easy to change filter
• Filter lasts up to 6 months
