Sundström SR599 Organic + inorganic + acid gas + ammonia + mercury + particles filter ABEK1HgP3 — threaded (Each)

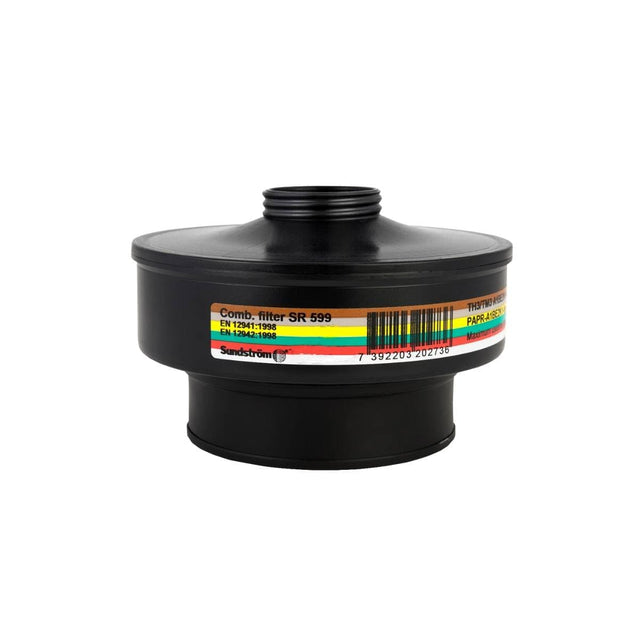

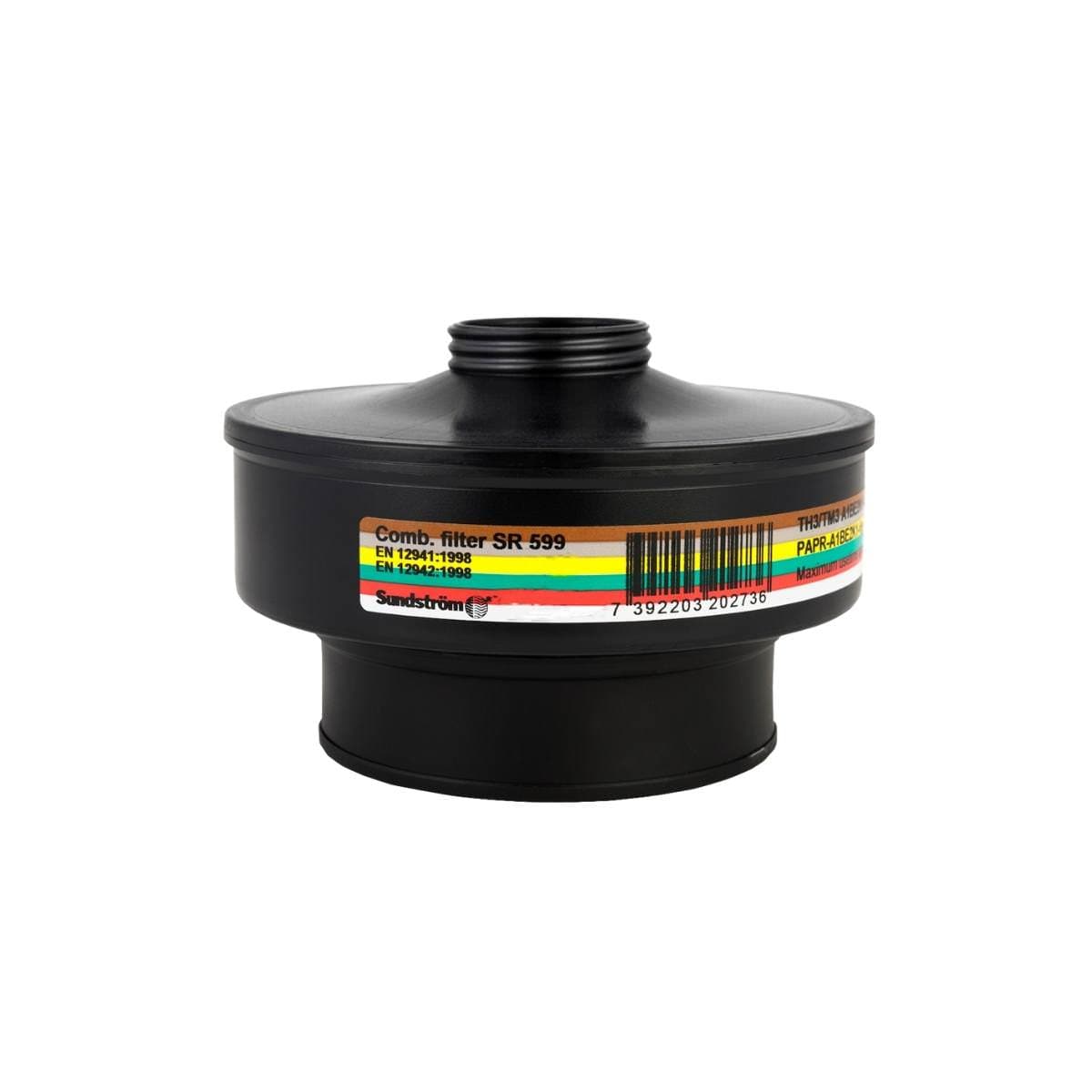

The Sundström SR 599 is a threaded ABEK1HgP3 combination filter (regular capacity) for Sundström's SR 500 and SR 500 EX powered fan units. It is made of polypropylene plastic with no metal parts, and it protects against organic, inorganic and acid gases, ammonia, mercury vapour and particles.

Protection

• A: organic gases and vapours, such as solvents, with boiling points above +65°C
• B: inorganic gases and vapours, such as chlorine, hydrogen sulphide and hydrogen cyanide
• E: acid gases and vapours, such as sulphur dioxide and hydrogen fluoride
• K: ammonia and certain amines, such as ethylene diamine
• Hg: mercury vapour; maximum use 50 hours
• P: wet and dry particles such as dust, mist, smoke, fume, mould and fibre

Breakthrough times

• Cyclohexane (A), 500 ppm: more than 80 min
• Chlorine (B), 1,000 ppm: more than 30 min
• Hydrogen sulphide (B), 1,000 ppm: more than 60 min
• Hydrogen cyanide (B), 1,000 ppm: more than 35 min
• Sulphur dioxide (E), 1,000 ppm: more than 30 min
• Ammonia (K), 500 ppm: more than 75 min
• Mercury vapour (Hg), 13 mg/m3: more than 104 hours
• Particle filtration (paraffin oil): above 99.997%

Specifications

• Diameter 138 mm, thickness 89 mm, weight 420g
• Thread: 44 x 1/7 in.
• Use: -10°C to +55°C; storage: -20°C to +40°C, both below 90% RH
• Shelf life: 5 years with the seal unbroken
• Carton: 10 units

Storage

Keep at room temperature in a clean, dry place. Once the seal is broken, store it in an air-tight container away from contaminants.
