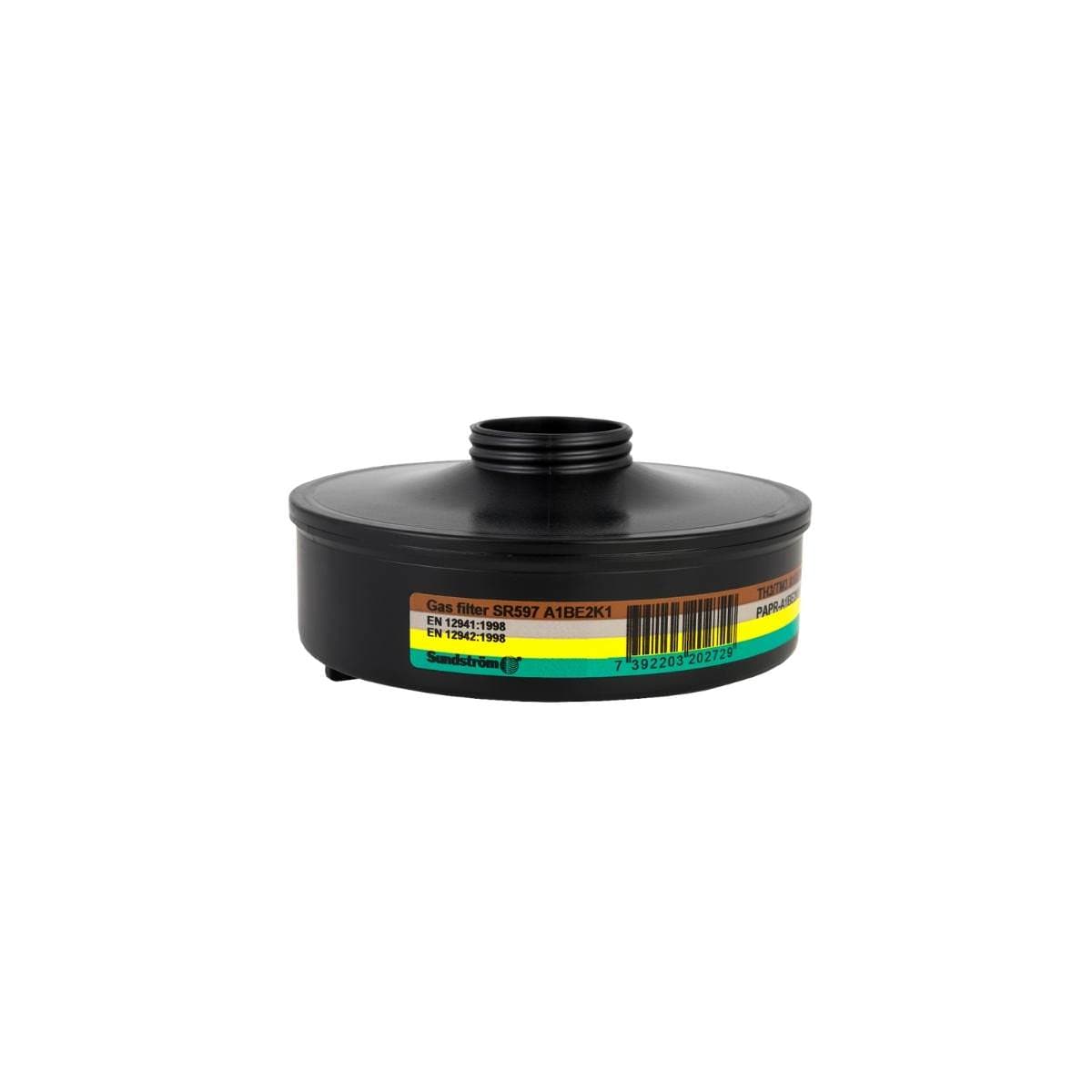

Sundström SR597 A1BE2K1 Threaded Filter (Each)

The Sundström SR 597 is a threaded A1BE2K1 gas filter for the SR 500 and SR 500 EX fan units. Its A1 part protects against organic gases and vapours with boiling points above +65 °C, such as solvents; B2 against inorganic gases such as chlorine, hydrogen sulphide and hydrogen cyanide; E2 against acid gases such as sulphur dioxide and hydrogen fluoride; and K1 against ammonia and certain amines, such as ethylene diamine. The fan must always be used with two particle filters or two combined filters.

Breakthrough times

• A1, cyclohexane, 500 ppm: >80 min
• B2, chlorine, 1,000 ppm: >30 min
• B2, hydrogen sulphide, 1,000 ppm: >60 min
• B2, hydrogen cyanide, 1,000 ppm: >35 min
• E2, sulphur dioxide, 1,000 ppm: >30 min
• K1, ammonia, 500 ppm: >75 min

Specifications

• Material: polypropylene, no metal parts
• Size: 108 mm diameter, 65 mm thick
• Weight: 400g
• Thread: 44 x 1/7"
• Temperature range: -20°C to +40°C at <90% RH (storage and use)
• Shelf life: 5 years unopened

Storage

Store at room temperature somewhere clean and dry. Once the seal is broken, keep it in an air-tight container away from contaminants.
