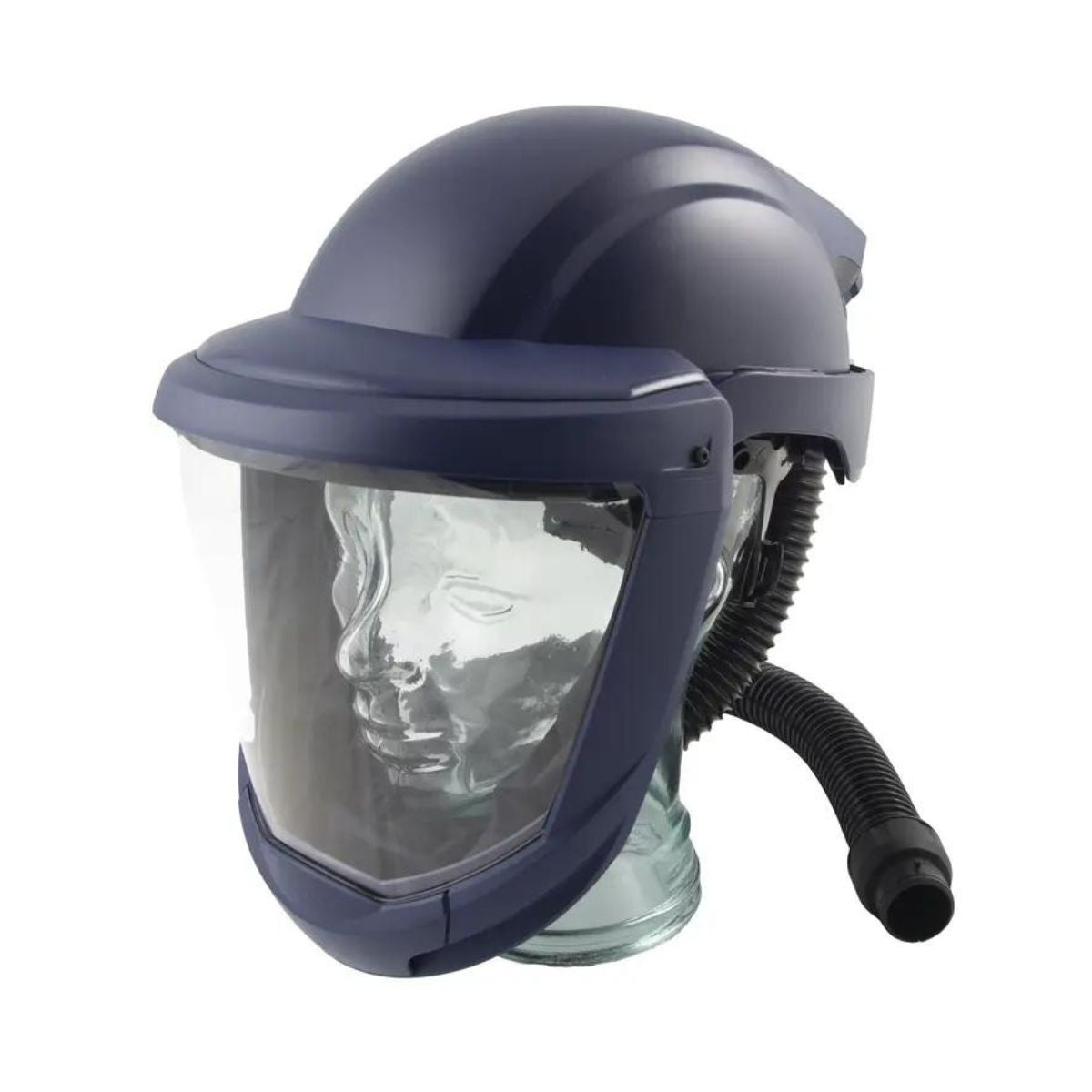

Sundström SR580 Helmet with Visor and hose 195-05520

The Sundström SR 580 is a helmet with visor and breathing hose that connects to a battery-powered SR 500, SR 500 EX or SR 700 fan with approved filters, forming a fan-assisted respirator. Air pressure inside the visor keeps particles and other pollutants out of the breathing zone, and it can be used wherever filter respirators are recommended, especially for hard, hot or long work.

Paired with the SR 507 compressed air equipment, it becomes a continuous-flow breathing apparatus on a compressed air supply.

Specifications

• Number: H06-8012; blue
• Approvals: EN 12941:1998 + A2:2008, EN 14594:2005, EN 166
• Assigned protection factor: 100 (3A, 3B), 200 (TH3)
• Nominal protection factor: 200 (3A, 3B), 500 (TH3)
• Directives: (EU) 2016/425 PPE; ATEX 2014/34/EU (II G Ex ib IIB T3 Gb, II 2 D Ex ib IIIC T195° Db)
• Operating temperature: -10 to +55 °C at under 90% RH
• Storage temperature: -20 to +40 °C at under 90% RH
• Shelf life: 5 years; made in Sweden
