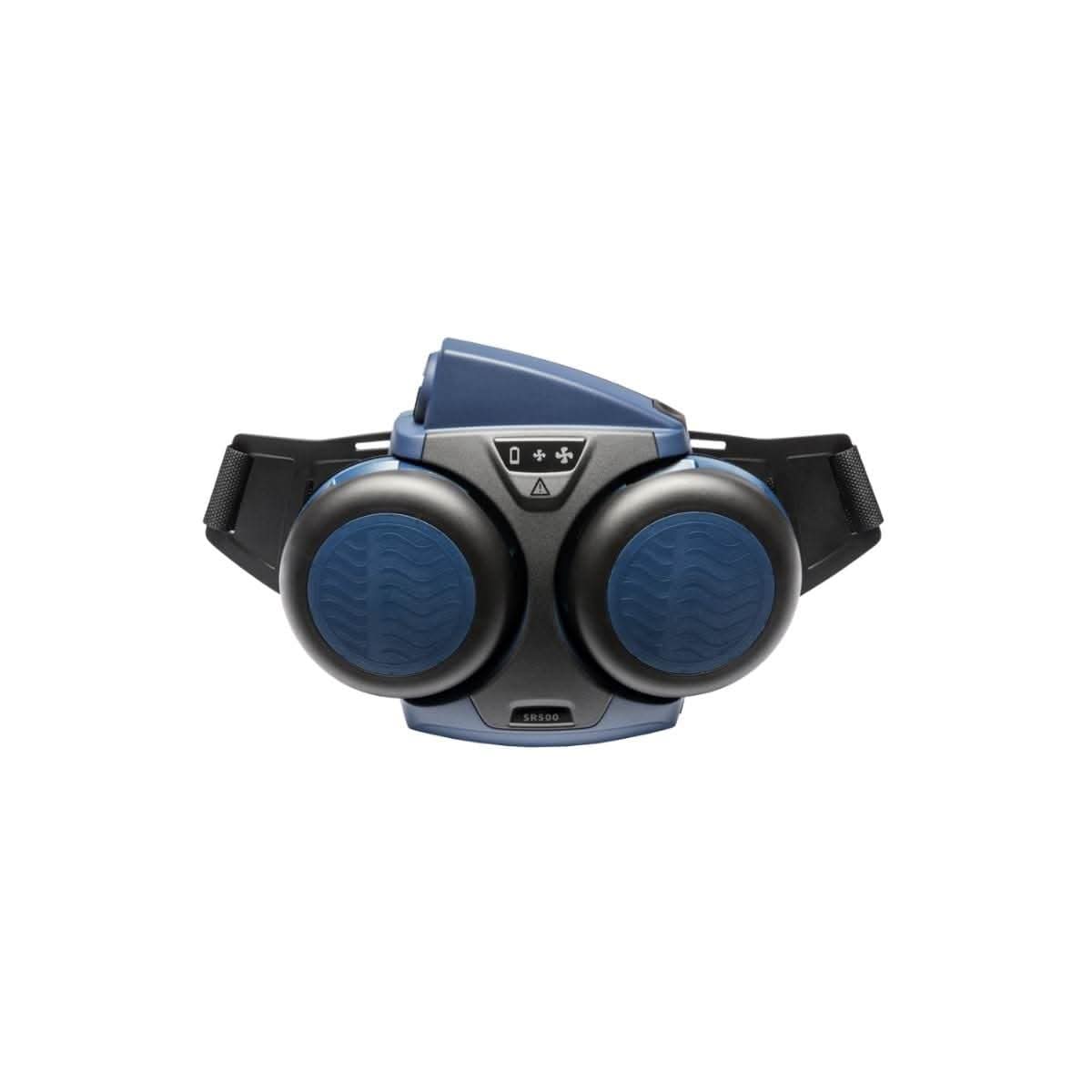

Sundström AS500 powered air purifying respirator PAPR - Fan Unit with Standard Battery, Belt and Charger (Each)

Sundström SR500 powered air purifying respirator (PAPR) is an alternative to negative-pressure filter respirators in situations where these are recommended. The fan-assisted air flow may be of benefit during extended periods of work in warm conditions. The fan can be used with Sundström hoods, face shields or full face masks.

Gas and Particles - Suitable for a wide variety of work conditions.

1 unit per carton

Battery-powered, fan-assisted air-purifying respirator that can be used as an alternative to negative-pressure filter respirators where these are recommended. This applies particularly to extended periods of hard work in warm conditions. The fan can be used with Sundström hoods, face shields or full face masks. The fan unit is fitted with a suitable filter, and the filtered air is fed through a hose to the facepiece.

Features

• Lithium-ion battery
• Battery available as Standard (STD)
• Battery recharge time: approximately 1.5 h (STD)
• Supplied with 2 filters/filter combinations
• Operating time up to 12 h
• Single control for on, off and operating status
• Automatic air flow control
• Can be used with a variety of Sundström hoods, shields or full face mask
• HOSE NOT INCLUDED

Visual display

• Normal operation
• Boost fan operation
• Dip in air flow/clogged particle filters
• Battery low
• Air flow obstruction

Air flow rate

• 175 l/min (normal operation)
• 240 l/min (boost operation)

Battery

• 14.8 V, 2.2 Ah, lithium-ion (STD)


Battery

Temperature range

• Operation: –10°C to +55°C at <90% RH
• Storage: –20°C to +55°C at <90% RH


Low flow warning: <175 l/min

Filter thread: Rd 44 x 1/7"

Weight: FAN UNIT WITH BELT AND...

IP rating:

• IP67 (Ingress Protection)
• Particles: 6 — protected against all dust — 'dust-tight'
• Liquids: 7 — protected against immersion for 30 minutes in water to a depth of 1 metre)
