Sundström SR500 Fan Unit with Standard Battery and SR570 Face Shield 190-06161 (Each)

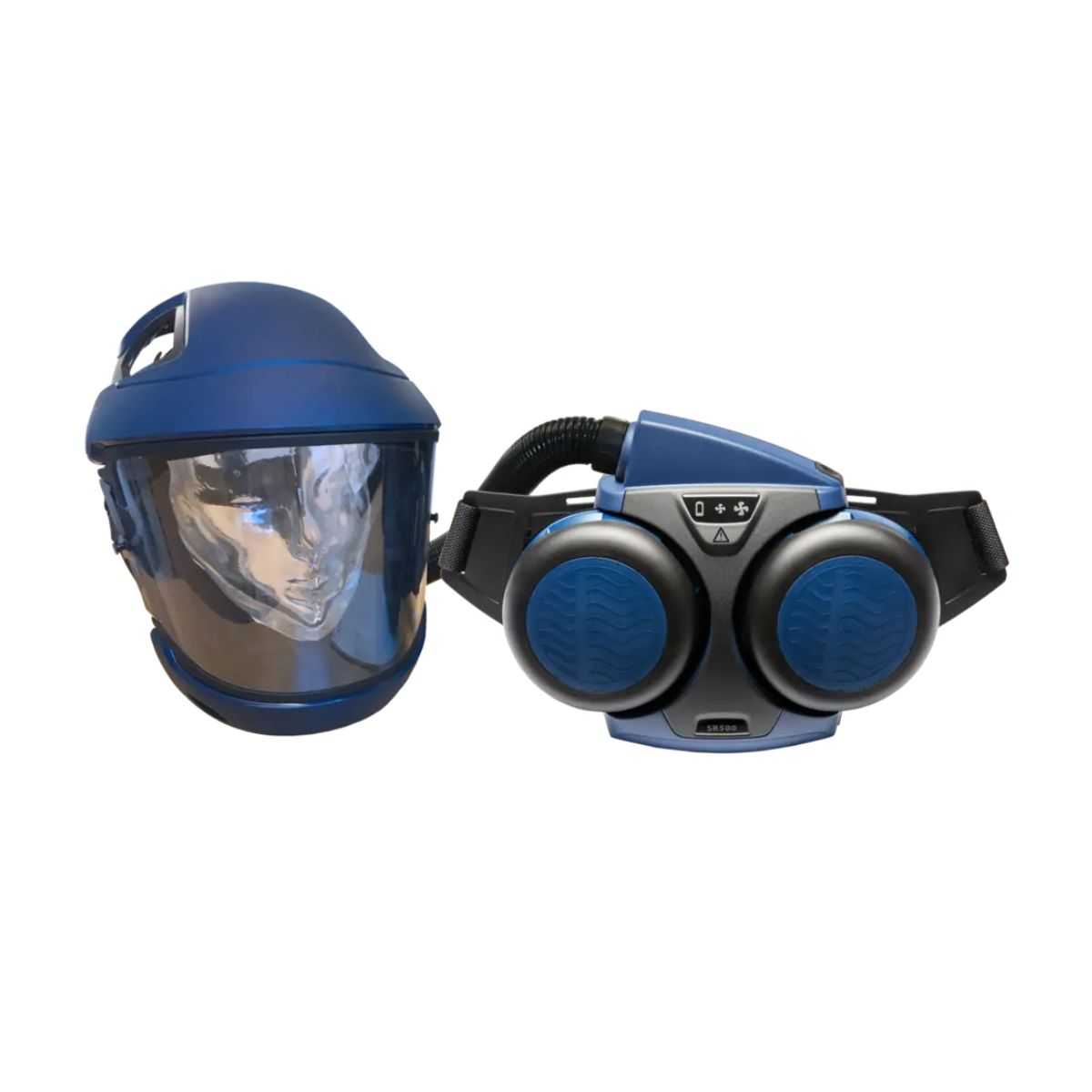

This Sundström kit (190-06161) combines the SR 500 battery-powered fan unit, an SR 502 standard battery and the SR 570 face shield. With a filter fitted, the fan sends filtered air through a hose to the face shield, and the pressure this creates stops surrounding pollutants getting in. A powered system like this can be used instead of a filter respirator wherever one is recommended, and it is especially suited to hard, warm or long jobs.

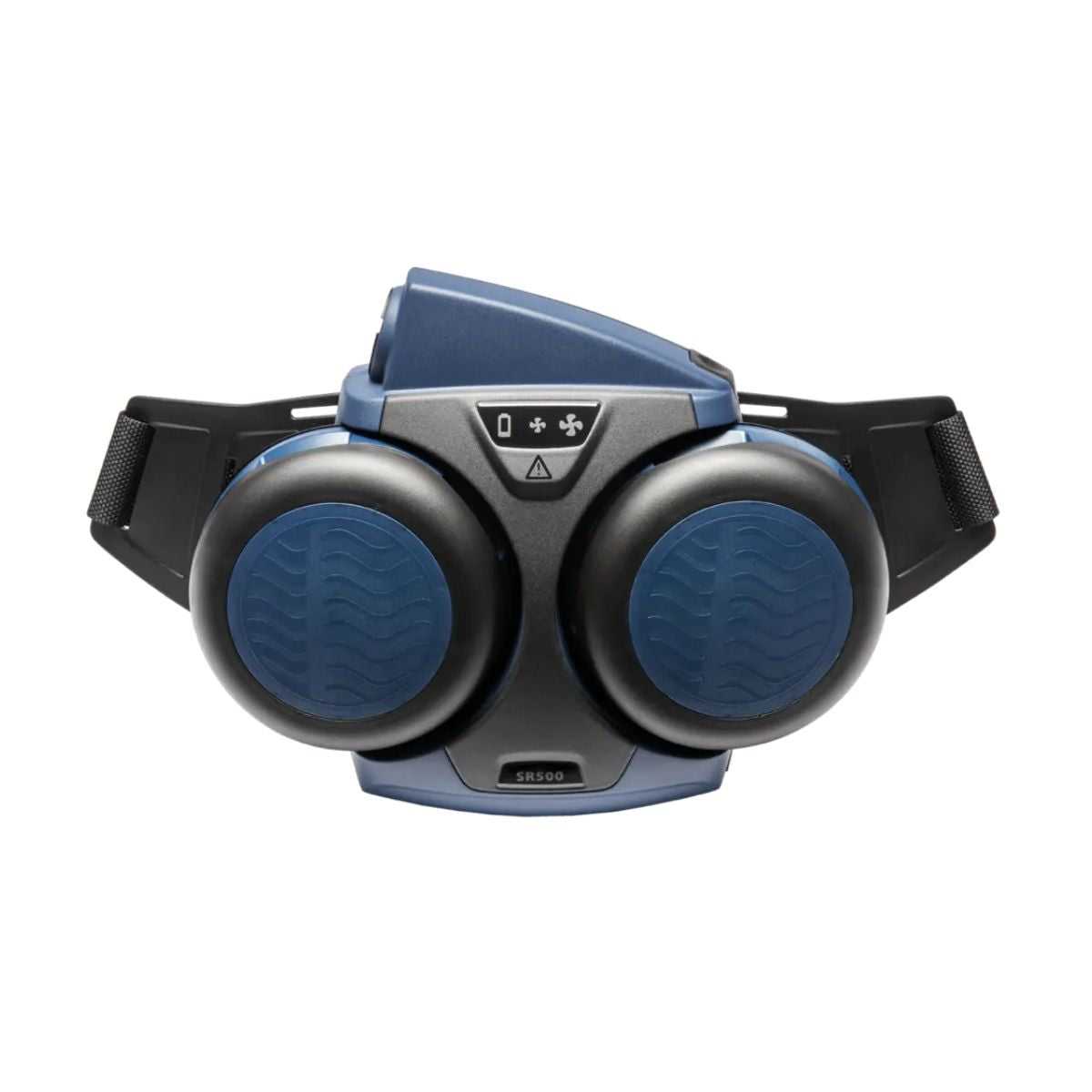

SR 500 fan unit (H06-0112)

• Lithium-ion battery: standard 2.25 Ah (included; charges in around 1.5 hours) or heavy duty 3.5 Ah (around 2 hours)
• Operating time up to 13 hours
• Takes two filters or combined filters
• One control for start, stop and operating mode; display with symbols
• Automatic airflow control that compensates for air pressure and temperature
• Electronics rated IP67 to IEC/EN 60529
• Approvals: EN 12941:1998 + A2:2008 and EN 12942:1998 + A2:2008
• Also works with Sundström hoods SR 520, SR 530, SR 561, SR 562, SR 601, SR 602 and SR 604, the SR 900 half mask, SR 200 full face mask, SR 580 helmet with visor, and welding shields SR 570/SR 574, SR 592 and SR 584/SR 580

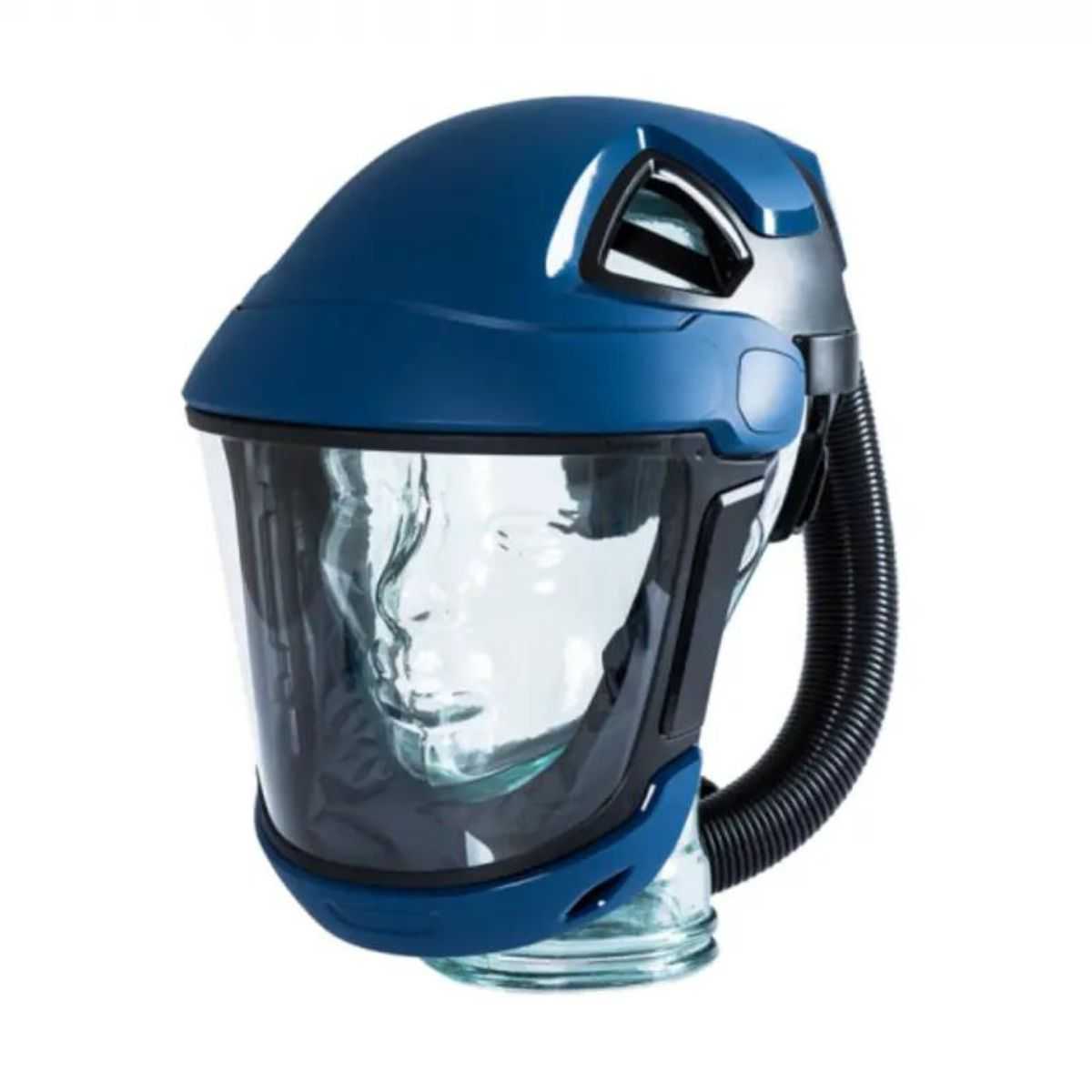

SR 570 face shield (H06-6512)

• Robust shield with a flip-up visor and an attachment for hearing protectors
• Wide range of accessories to suit your work
• Nominal protection factor 200 (3A, 3B), 500 (TH3); assigned 100 (3A, 3B), 200 (TH3)
• Approvals: EN 12941:1998 + A2:2008, EN 14594:2005, EN 166
• Materials: PC/ABS, PA and PC

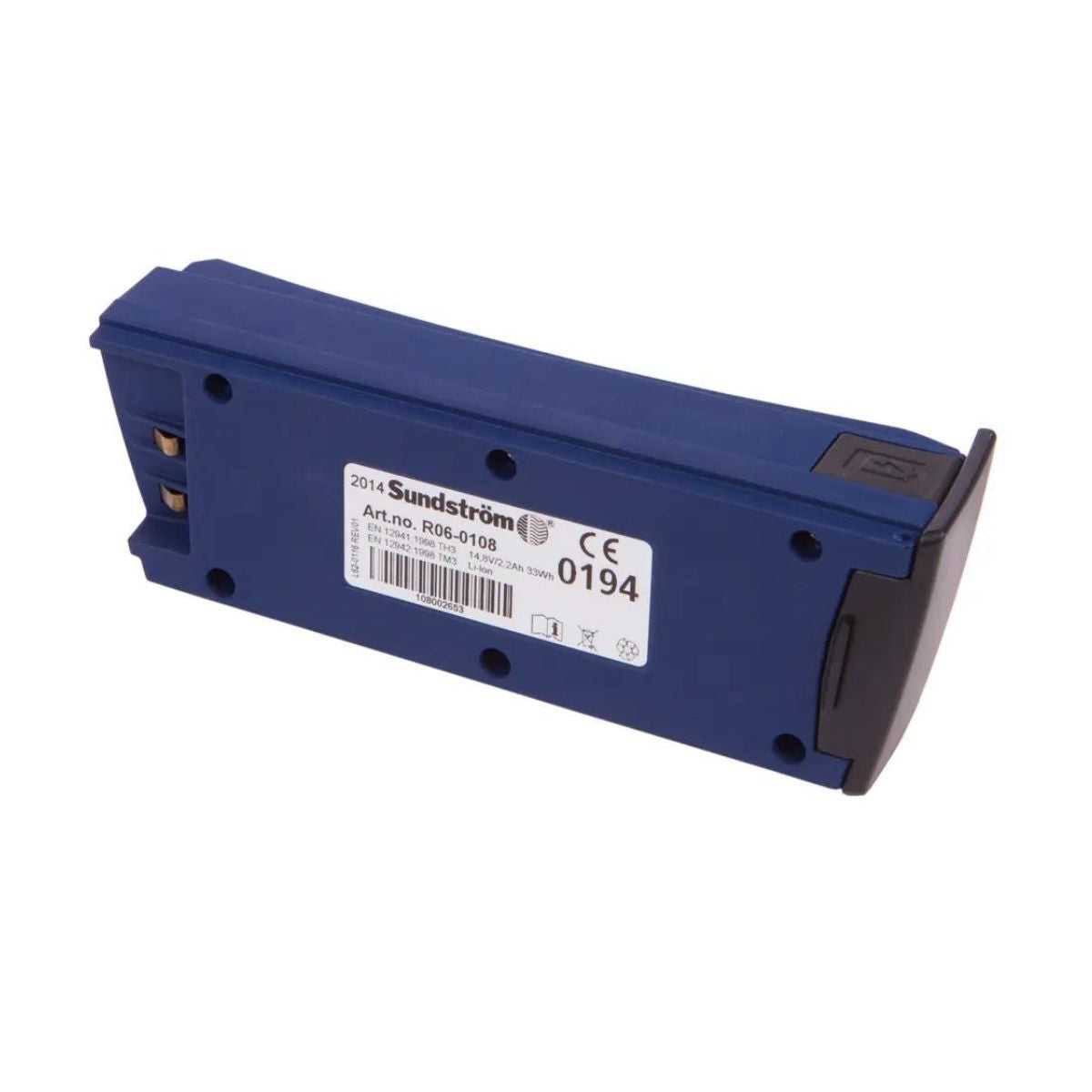

SR 502 standard battery (R06-0108)

• Li-Ion 14.4V, 2.25 Ah

Common specifications

• Operating temperature: -10 to +55 °C, below 90% RH
• Storage temperature: -20 to +40 °C, below 90% RH
• Shelf life: 5 years
• Made in Sweden
• PPE Regulation (EU) 2016/425
