Skylotec GORDON Rescue Pulley Kit 3:1 SET-402-3
Skylotec GORDON Rescue Pulley Kit 3:1 SET-402-3 - 45m (15m travel) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

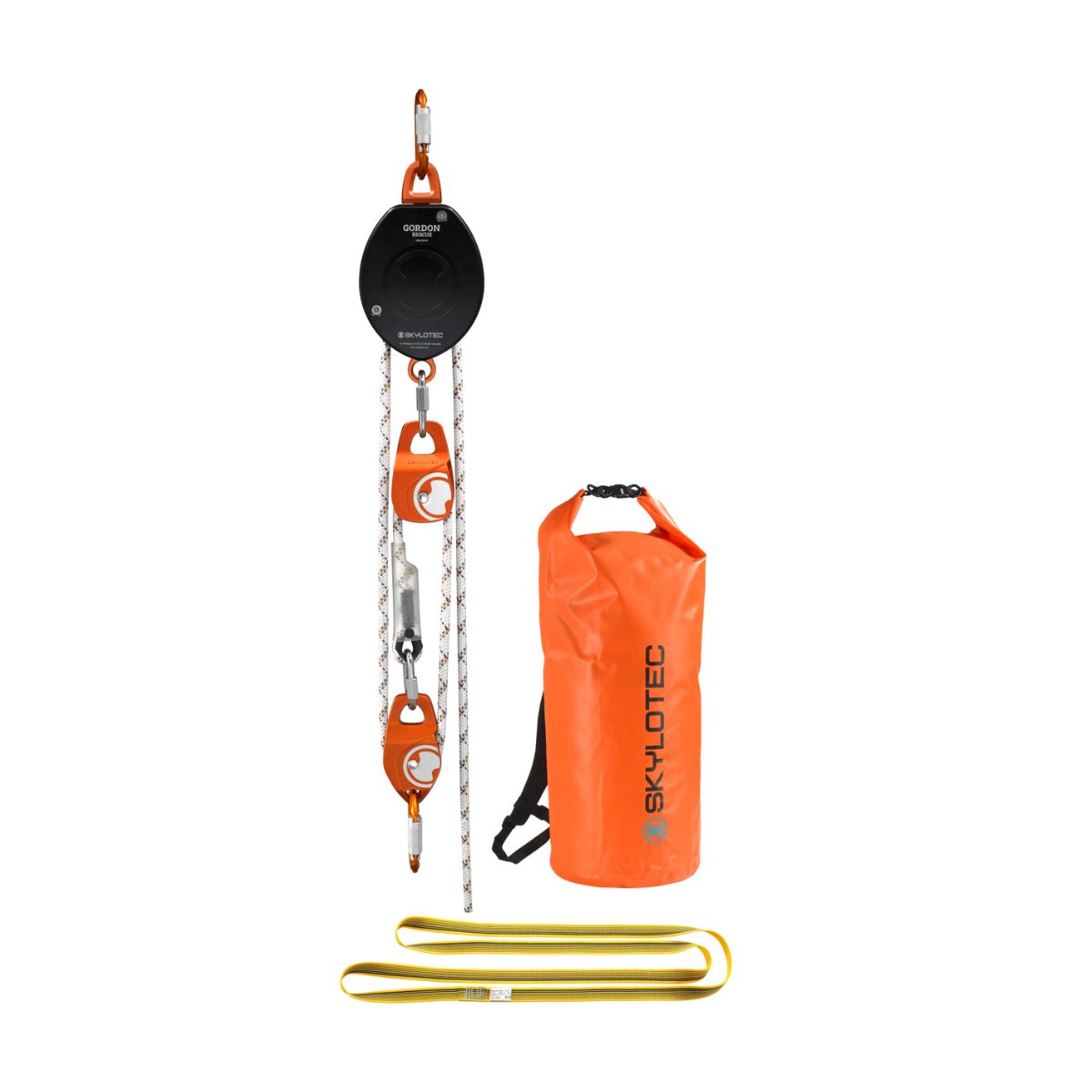

Self-blocking pulley system with GORDON RESCUE in the 1:3 configuration. This set includes the GORDON RESCUE fall arrester device and the corresponding hardware. The SUPER STATIC 10.5 static rope (item no. L-0741) with sewn eyelets should also be ordered in the required length.
The required length can be calculated from the maximum lifting height multiplied by the required ratio (3 in this case). With this pulley system, for example, a lifting height of 20 metres will require a 60 metre long rope.
The KIT also contains a LOOP 26 KN sling and a DRYBAG for practical storage of the individual components.
Kit Contains
- 1 x GORDON RESCUE HSG-020-R
- 2 x ORBITER T H-276
- 2 x OVAL LINK 8 VA MAT-H-048-8-VA
- 2 x OVALOY TRI MAT-H-069
- 1 x LIFT FIX R MAT-H-064-R
- 1 x BA-Connectors, Carabiners MAT-BA-0044-01
- 1 x BA-Part 1 General Manual MAT-BA-0140-01
- 1 x BA-Pulley MAT-BA-0108-00
- 1 x BA-LIFT FIX, HOIST FIX, CHEST MAT-BA-0104-00
- 1 x GORDON ROPE 10.5 L-0741-LENGTH
- 1 x LOOP 26 kN L-0008-1,5
- 1 x DRYBAG ACS-0014-OR-M
Standards
- EN 363
Specifications
Art.Nr. | 45m - SET-402-3-45 60m - SET-402-3-60 |
GTIN | 45m - 4030281277965 60m - 4030281277972 |
Gross weight | 45m - 7.38 kg 60m - 8.42 kg |
Net weight | 45m - 7.38 kg 60m - 8.42 kg |
Material | Various |
Application Areas | Various |
Colour | Various |
Dimension | 45m, 60m |
